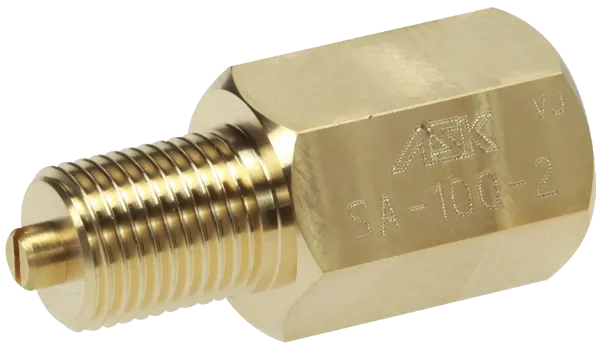

- Joint damper
- Low pressure damper
- SA
Prevent pulsating pressure of your pressure gauge!
  Example of use |
Features
|
Specifications
| Maximum pressure used | 10MPa |
| Proof pressure | 18MPa |
| Material | C3604 |
| Applicable fluid | Oil, water, air |
Type table
| Type | G･D | ℓ1 | ℓ2 | L | Hex | Recommended retightening torque | Packing material | Packing size (OD x ID x thickness) |
Weight |
| SA-100-2 | G1/4 | 14 | 16 | 42 | 19 | 40N･m | C1100 | 11x5.5x3 | 60g |
| SA-100-3 | G3/8 | 16 | 18 | 45 | 24 | 50N･m | 14.5x5.5x3 | 100g |
Damper effect test
Drawing data download
| Product name | Type No. | Download |
|---|---|---|
| Joint for pressure gauge | AJ-102,103,302,303 | |
| Joint for pressure gauge (Stainless steel type) | AJ-105,106,305,306 | |
| Low pressure damper | SA-100-2,3 | |
| Low pressure damper (Stainless steel type) | SA-100-5,6 | |
| High pressure damper | SAH-100-2,3 | |
| High pressure damper (Stainless steel type) | SAH-100-5,6 | |
| Glycerin pressure gauge damper | SAD-2,3T | |
| Glycerin pressure gauge damper (Stainless steel type) | SAD-5T,6T | |
| Damper for pressure switch | PSD-2,3 | |
| Damper for pressure switch (Stainless steel type) | PSD-5,6 |
* Please confirm "Terms of Use" about the use of PDF data.
