Top > Products Info > Hydraulic Accessories：Pressure tester > APT

  • Hydraulic Accessories
  • Pressure tester

Suitable for pressure detection where pressure measurement is not permanently necessary.
You can bring it any place!

images

images

Features

  • You can easily measure the circuit pressure up to 35MPa even during pressurization.
  • If you install a special nipple (APT-N-2) to the circuit requiring pressure measurement, you can check the pressure whenever required.
  • Cost reduction, by replacing the pressure gauge currently in use with this pressure tester.
  • You can read the pressure at all positions by connecting a high pressure nylon hose.
  • You can use this product when you want to vent air from the circuit and to sample hydraulic oil.
  • Easy diagnosis and maintenance of the hydraulic circuit.
images

Pressure tester

Specifications

Maximum pressure used 35MPa
Proof pressure 50MPa
Applicable fluid General petroleum based hydraulic oil

Example of use

Construction machines concrete pumping car, shovel car, bulldozer
Machining tools and forging machines large machines, machines for specific use, hydraulic presses
Iron and steel Iron and steel making plants
Injection forming machines Accumulator injection circuits, clamping circuits
Vehicles Large special vehicles

Instruction for use

  • Use of the pressure tester must be limited to temporary pressure check. For use permanently subjected to circuit pressure, be sure to use our "NH hose" with pipe fittings.
  • The pressure tester hose is mainly made of nylon resin. Do not fold or twist it.
  • Special nipple
  • APT-N-※
images This is a check valve type special nipple to be mounted on the pressure detecting position. If you tighten the metal fitting on the high pressure hose side, the check valve will open.

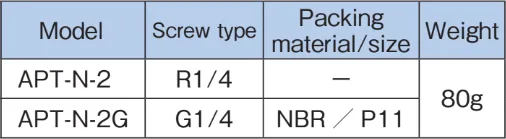

Type Screw diameter Packing Material Packing Size Weight
APT-N-2 R1/4 NBR - 80g
APT-N-2G G1/4 P11

* Design for G-screw is available. For details, please contact us.
  • High pressure hose
  • APT-※
images This is a high pressure hose to connect between the special nipple and glycerin pressure gauge. You can use it when the pressure detecting position is far separated from the place where you read the pressure gauge.
Type Length Maximum
pressure		 Proof
pressure		 Temperature
range		 Ambient
temperature		 Minimum
bending
radius		 Weight
APT-05 0.5m 35MPa 50MPa -20～60℃ max.60℃
or less		 40mm 90g
APT-10 1.0m 100g
APT-20 2.0m 120g
APT-30 3.0m 130g
  • Pressure gauge adapter
  • APT-G-※
images Use this adapter when you want to connect the high pressure hose to the glycerin pressure gauge. Select the best adapter in conformance to the screw diameter of the glycerin pressure gauge to be used.
If you use this pressure gauge adapter, you can easily connect or disconnect the glycerin pressure gauge and high pressure hose by hand without using a wrench. Be sure to use this adapter for each of the glycerin pressure gauges you use.
Type Screw
diameter		 Packing
Material		 Packing size
(OD x ID x thickness)		 ℓ Hex Weight
APT-G-2 G1/4 C1100 11.2x6x1.5 12 21 60g
APT-G-3 G3/8 14.7x6x2 14 24
  • Pressure gauge direct connection joint
  • APT-PG-※
images This is a joint to connect between the special nipple and glycerin pressure gauge.
Use this joint when you want to detect pressure without using a high pressure hose.
Select the joint in conformance to the screw diameter of the glycerin pressure gauge to be used.
Type Screw
diameter		 Packing
Material		 Packing size
(OD x ID x thickness)		 ℓ1 ℓ2 Hex Weight
APT-PG-2 G1/4 C1100 11.2x6x1.5 12 29 21 100g
APT-PG-3 G3/8 14.7x6x2 14 27 24
  • Storage kit (Plastic Case)
  • APT-BOX
images Suitable for accommodating the pressure tester pieces in a compact space, to be used as a portable tool.
The casing can accommodate up to 3 glycerin pressure gauges, 6 special nipples, 3 pressure gauge adaptors, 1 pressure-gauge direct coupling, 3 sets of high pressure hoses.
Type Size Weight
APT-BOX 410x300x70 1300g

Drawing data download

Product nameType No.Download
Pressure tester, special nipple R1/4APT-N-2PDF
Pressure tester, special nipple G1/4APT-N-2GPDF
Pressure tester, special nipple R1/4 (Stainless steel type)APT-N-5PDF
Pressure tester, special nipple G1/4 (Stainless steel type)APT-N-5GPDF
Pressure tester, high pressure hose (The same for stainless steel type)APT-05,10,20,30PDF
Pressure tester, high pressure hose (The same for stainless steel type)APT-※-NSPDF
Pressure tester, pressure gauge adapterAPT-G-2,3PDF
Pressure tester, pressure gauge adapter (Stainless steel type)APT-G-5,6PDF
Pressure tester, direct connection joint for pressure testerAPT-PG-2,3PDF
