Top > Products Info > Measuring Instruments：Pressure switch > CE

  • Measuring Instruments
  • Pressure switch

Compact pressure switch characterized by miniature size and light weight!

images

Features

  • A newly developed seal is used to ensure outstanding stability for frequent use.
  • A long service life is provided by a newly developed lever.
  • Designed in a dust- and water-proof structure.
  • Your pressure setting work is greatly facilitated by the special indication specifically designed for easy setting.

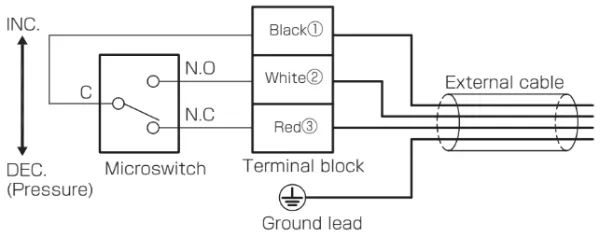

  • Use of a screwless terminal block reduces your wiring work time.
  • Since a damper is built into the switch, you need not install an external damper.

Type

CE - 6
num num
num Model High pressure switch（piston type）
num Pressure setting range
6 :  1～6MPa   Connection screw diameter Rc1/4
16 :  2～16MPa   Connection screw diameter Rc1/4
25 :  3～25MPa   Connection screw diameter Rc1/4
40 :  4～40MPa   Connection screw diameter Rc1/4
60 :  6～60MPa   Connection screw diameter R3/8 male
80 :  8～80MPa   Connection screw diameter R3/8 male

Specifications

Type CE6 CE16 CE25 CE40 CE60 CE80
Applicable fluid Clean petroleum hydraulic oil equivalent to ISO VG32 or 46
(separately specified if non-flammable fluid is used)
Repeatability ±2.0% F.S
Proof pressure 50MPa 80MPa 120MPa
Ambient temperature -20～80℃
Mechanical service life 1 million operations or more
Electrical service life 200,000 operations or more (at rated load)
Maximum frequency of use 60 operations/min.（Electrical rating）
Electrical rating 250VAC 3A
125VAC 5A
Wire gland diameter G1/2
Weight 550g 590g

Drawing data download

Product nameType No.Download
Digital pressure switch 1.0MPaDPS-1.0PDF
Digital pressure switch 2.5MPaDPS-2.5PDF
Digital pressure switch 10MPaDPS-10PDF
Digital pressure switch 16MPaDPS-16PDF
High pressure switch 6-40MPaCE-6,16,25,40PDF
High pressure switch 60MPa, 80MPaCE-60,80PDF
Pressure switch 0.1-5MPaBP-F8-1A～50CPDF
Pressure switch 10-500MPaBP-F8-100C～500CPDF

* Please confirm "Terms of Use" about the use of PDF data.
