Top > Products Info > Water Supply Accessories：Temperature switch > TSF（SUS）

  • Water Supply Accessories
  • Temperature switch

This is a bimetal temperature switch developed to detect oil temperature in the oil tank!

sus images

images images

Specifications

  • Flange for temperature switch with DIN connector. The temperature switch can be mounted on the tank upper side.
  • Install the switch on the upper side of the tank in such a manner that the switch main unit is entirely immersed in oil.
  • The detection length from 130 to 500 mm, at an interval of 1 mm, is available.

* For 4-pin connector set, please contact us.

Type

TSF - ※ X - 250 - 31
num num num num num
num Model Temperature switch set (with pipe)
num Temperature settings Settings range from 45 to 75 ℃ in increments of 5 ℃.
(Fixed settings at the time of shipment)
num Contact configuration X : Turned off by temperature rise
Y : Turned on by temperature rise
num TSF detection length (L) min.130mm～max.500mm（in increments of 1mm)
Temperature setting range: ±3mm
num Model No. 31 : made of Stainless steel

Contact Specification

Type Contact type Differential Contact capacity Minimum current Service temperature range Contact life Applicable fluid Weight
TSF-※X-31 Turned
off by
temperature rise		 45X〜75X:
6.5（5～8）℃

45Y〜65Y:
4.5（3～6）℃

70Y〜75Y:
6.5（5～8）℃
AC125V 1.5A
DC12V 1.5A
AC250V 0.9A
DC24V 0.9A
（Standard service life: 100 thousand cycles）
50mA -20～105℃ Mechanical life:
200 thousand cycles

Contact life:
Under nominal maximum load: 100 thousand cycles 		Flesh water,
General petroleum based hydraulic oil,
Water and glycol based hydraulic oil 		230g
without pipe
TSF-※Y-31 Turned
on by
temperature rise

Temperature settings

Set temperature range You can set the temperature in increments of 5 ℃ for 45 to 75 ℃.
Set temperature rank 45℃～50℃ 55℃～75℃
Set temperature tolerance ±3℃ ±4℃

Standard accessories

Standard accessories
Packing 1 pc (material: NBR, size P38)
Hexagon socket head bolt (M4 x 16) 2pc

Contact configuration

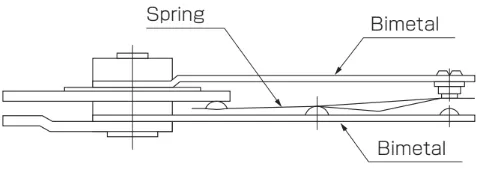

Function principle


Drawing data download

Product nameType No.Download
Thermostat mounted on tank (The same for stainless steel type)TSDPDF
Temperature switch setTSFPDF
Temperature switch set (The same for stainless steel type)TSF-SUSPDF
