▼Miniature cartridge type in-line check valve

Miniature cartridge type in-line check valve   ACC

RoHS
超小型カートリッジインラインチェックバルブ ACC

Ultra-compact embedded type saves piping space and joint costs!

    • This valve can be directly built into a joint and manifold.

    • You can install this into holes of the same dimensions in either direction.

    • This is equipped with a slow return function.(with a choke hole)

  • Specification

    • Max. pressure:30MPa

    • Proof pressure::38MPa

    • Material:SUM

    • Fluid:Petroleum oil

    • Weight:10g

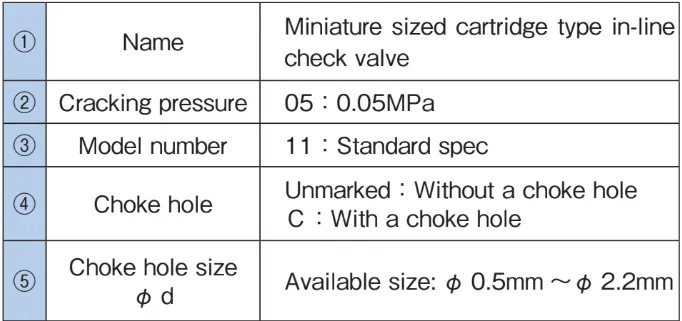

  • Model

    ACC 型式説明

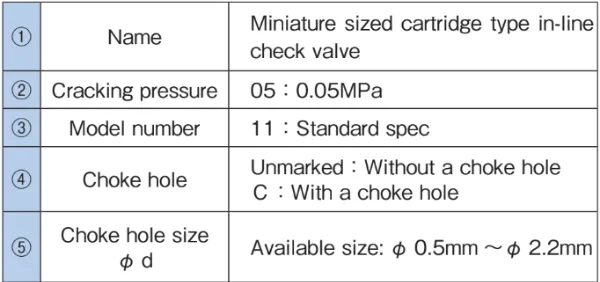

    ACC 型式説明詳細

    Flow/pressure drop characteristics

    流量-圧力降下特性

    Caution of use

    • In the case of the type without a choke hole, coat the outer diameter mounting screw (M12 x 1) with sealant to prevent oil leak through the threads.

    • Caution: if ACC valve is installed with the outer diameter screw coated with sealant, it is impossible to detach the ACC valve.

    Document download

    Drawing PDF download

    図面
    チェックバルブ類 AIC / OCS / ACC / ATC / ICS-MG / PC

    インラインチェックバルブ(逆止弁)

    ▷AIC-※-※-11 標準仕様(チョーク穴なし) ▷AIC-※-※-11-C※ 標準仕様(チョーク穴付) ▷AIC-※-※-31 (SUS)


    超小型カートリッジインラインチェックバルブ

    ▷ACC-05-11(-C※) (チョーク穴無し・有り 共用)


    スロットルチェックバルブ(流量調整弁)

    ▷ATC-01S (Rc1/8)▷ATC-02S (Rc1/4)▷ATC-03S (Rc3/8)


    残圧解放チェックバルブ(加圧時:閉)

    ▷ICS-02-MG


    パイロット操作チェックバルブ

    ▷PC-03-04-11


    インラインチェックバルブ(気体・液体用)

    ▷OCB※F(両端Rねじ)▷OCS※F(両端Rねじ SUS)▷ICS-※-007-11
    *Data is located on Google Drive. If you are unable to access Google Drive due to internal security reasons,
      we will send it as an email attachment, so please use the inquiry form (Contact Us) to request it.
    ▷If you would like CAD data or instruction manuals, please use the inquiry form.
