Pressure switch damper PSD

RoHS
圧力スイッチ用ダンパー PSD

Absorbs hydraulic pulsation! Can also be used for pressure gauges.

    • By attaching it to the connection screw of the pressure switch, it absorbs hydraulic pulsation and prevents contact chattering.

    • The durability of the pressure switch is greatly improved.

    • It can also be used as a stop valve by fully closing the needle valve.

    • When used at low pressure (mainly 4 MPa or less), response delay may occur depending on the usage environment.

  • ▷SUS-spec model

    Specification

    • Maximum working pressure: 35MPa

    • Pressure resistance: 63MPa

    • Body material: C3604

  • Model

    Please refer to the drawing for the shape and dimensions.

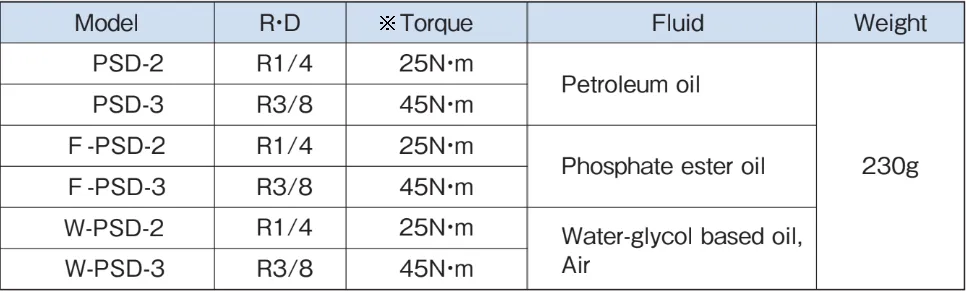

    PSD 形式表

    R・D: Thread size (male thread)
    Female threads are Rc1/4 for all PSD models.

    ※The tightening torque is a reference value for the "external thread" side. For the internal thread side, screw it in to the position of the reference diameter of the external thread on the mating side.

    Damper effect test

    damper effect graph

    Document download

    Drawing PDF download

    図面
    ダンパー類 SA / SAH / SAD / PSD

    低圧用ダンパー

    ▷SA-100-2/3▷SA-100-5/6(SUS)


    高圧用ダンパー

    ▷SAH-100-2/3▷SAH-100-5/6(SUS)


    グリセリン圧力計用ダンパー

    ▷SAD-2T/3T▷SAD-5T/6T(SUS)


    圧力スイッチ用ダンパー

    ▷PSD-2/3▷PSD-5/6(SUS)
    *Data is located on Google Drive. If you are unable to access Google Drive due to internal security reasons,
      we will send it as an email attachment, so please use the inquiry form (Contact Us) to request it.
    ▷If you would like CAD data or instruction manuals, please use the inquiry form.
