▼Digital Pressure Switch DPS

Digital Pressure Switch DPS

RoHS
CE
CE
デジタル圧力スイッチ DPS

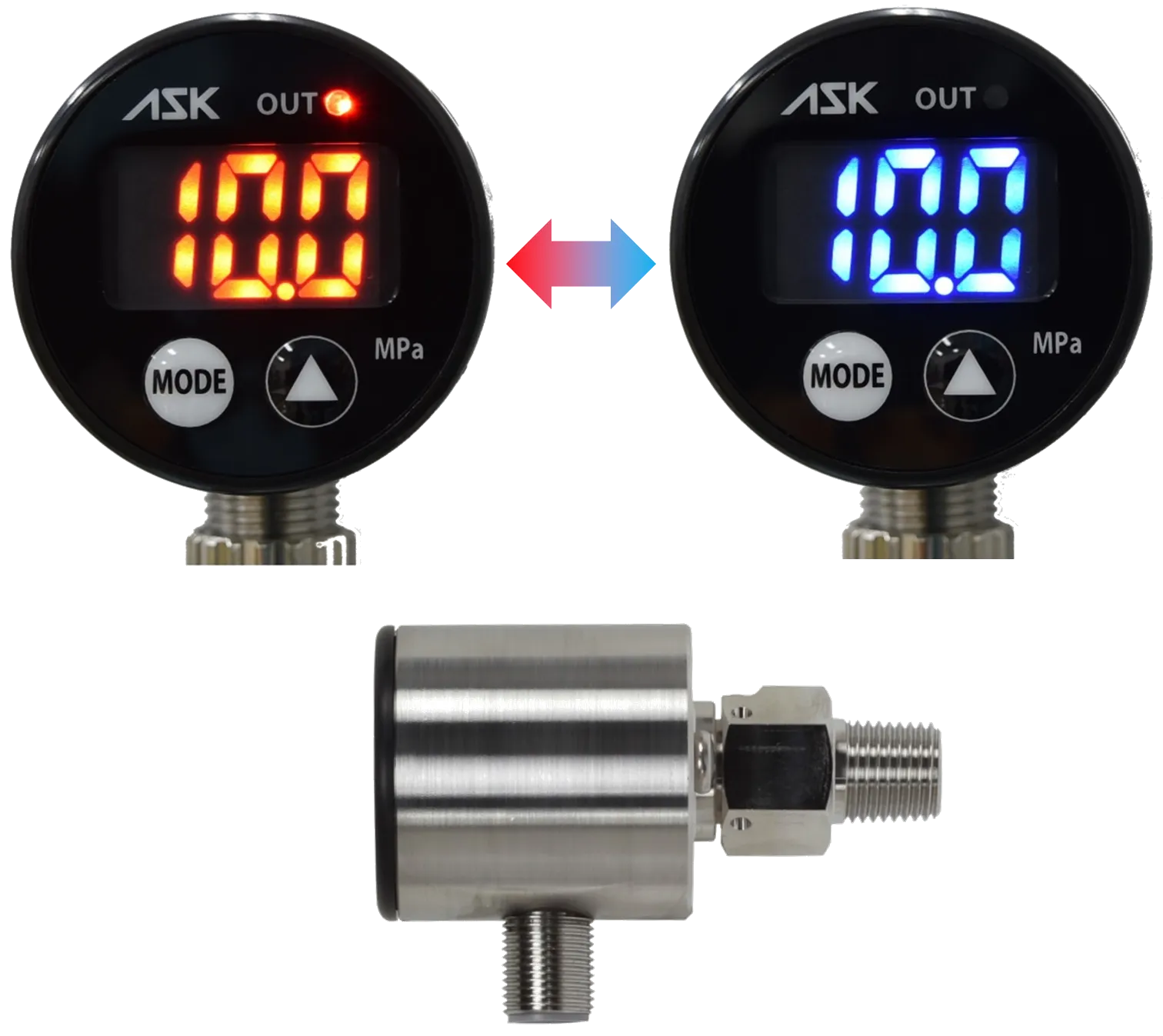

DPS LED2色切り替え & 形状

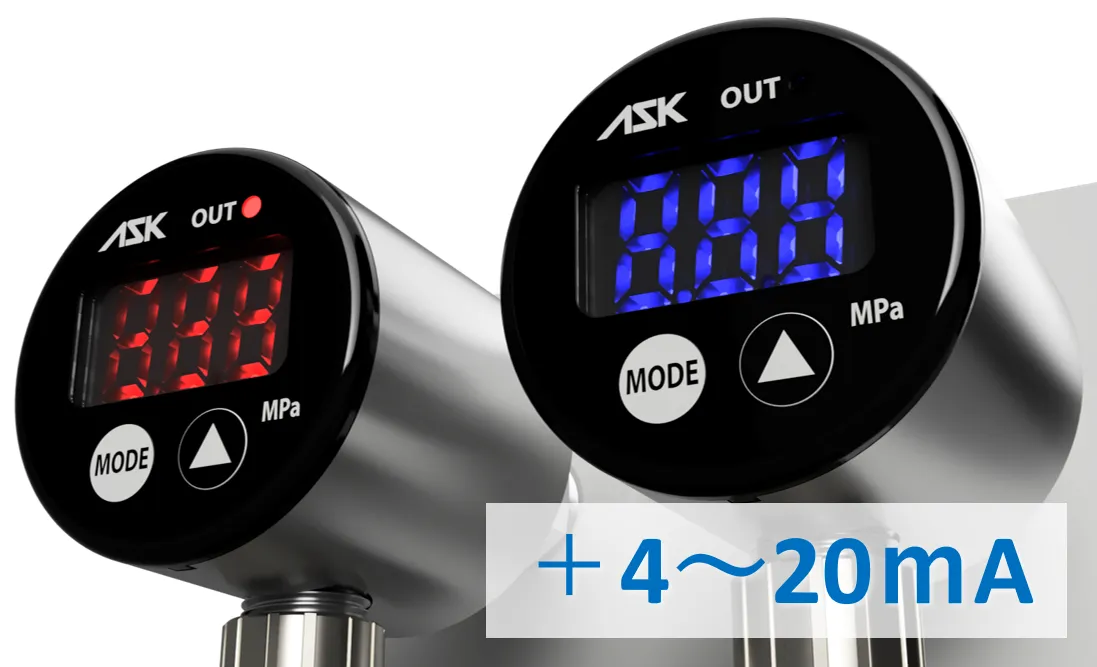

The new model is equipped with a 4-20mA analog output function!

For checking and monitoring hydraulic pressure, water pressure, and cooling water system pressure!
Visualize switch status by switching between red and blue colors!
Small size body large LED display, easy connection with union screws!
The newly installed 4-20mA analog output function further expands the range of applications!

Features

    • Small type: Dimension Φ38x38.8mm

    • Mass: 145g

    • Waterproof: IP67 equivalent

    • High durability: 4 times pressure-resistance

    • Wetted parts material: SUS304, SUS316, FKM

    • Environmental response: EU RoHS

    • EC directive compliance: CE Marking European Safety Standard acquired.

    • Wiring: M12×1 4-pin connector

    • Connection: R1/4 union screw

    • Easy operation with 2 buttons

    • Range: 1.0MPa, 2.5MPa, 10MPa, 16MPa

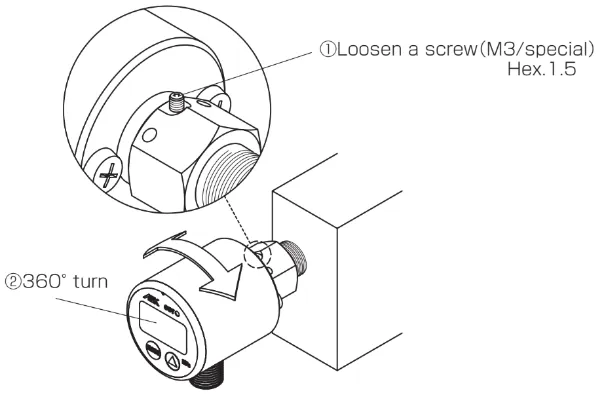

  • You can connect by a union screw without rotating a main body.

    The display color can be arbitrarily set by the following combinations.

    DPS 出力 LED赤ON 青OFF

    DPS 出力 LED青ON 赤OFF

    Output ON Red

    Output ON Blue

    Output OFF Blue

    Output OFF Red

    Description

    Model description

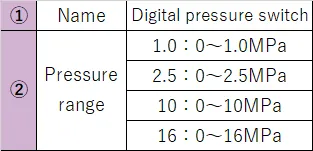

    model details explanation

    General spec

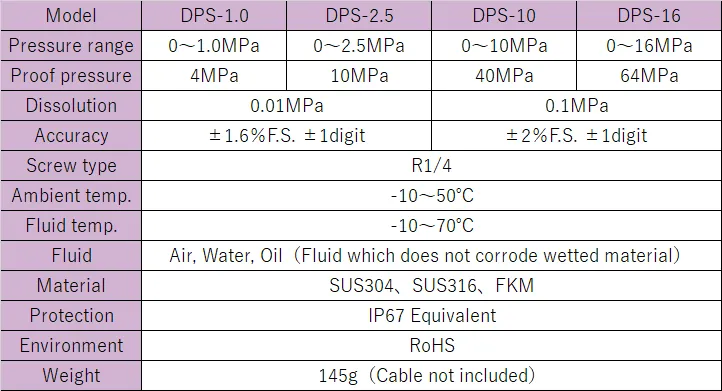

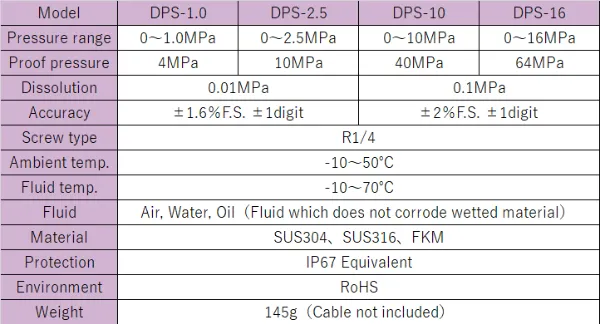

    Overall specifications

    Electoric, output spec

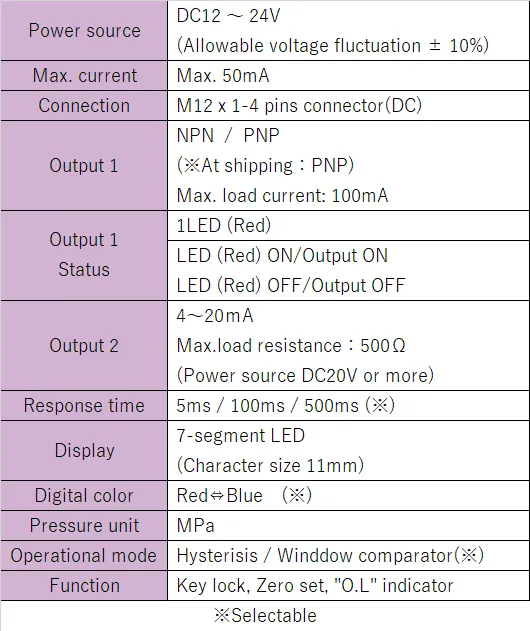

    Electrical specifications

    Output

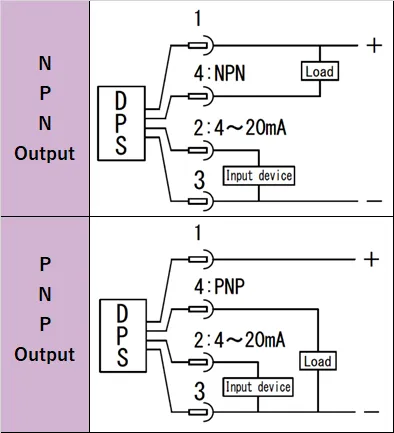

    Output diagram

    Wiring connection

    M12×1-4 pin connector

    Connector wiring diagram

    Operational mode

    Detection mode: ”Hysterisis” “Window comparator”

    (You can optionally select the display colors, “Red” or “Blue”.)

    Hysteresis mode
    Window comparator mode

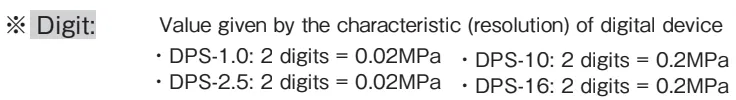

    digit description

    Analog output

    DPS 配線説明

    Document download

    Drawing PDF download

    図面
    圧力スイッチ類 DPS / CE

    デジタル圧力スイッチ

    ▷ DPS-1.0 / 2.5▷ DPS-10 / 16


    高圧圧力スイッチ

    ▷ CE-6 / 16 / 25 / 40▷ CE-60 / 80
    *Data is located on Google Drive. If you are unable to access Google Drive due to internal security reasons,
      we will send it as an email attachment, so please use the inquiry form (Contact Us) to request it.
    ▷If you would like CAD data or instruction manuals, please use the inquiry form.
