Temperature switch TSD (From tank side)

RoHS
温度スイッチ TSD

Bimetal type temperature switch attached from the side of the tank!

    • Temperature switch with DIN connector.

    • Attach the temperature switch body directly to the side of the tank with R1/2 screws.

    • This temperature switch is less expensive than the flange mounting type from the top of the tank.

    • Equivalent to IP65 protection class.

  • ▷ Stainless steel model

    Description

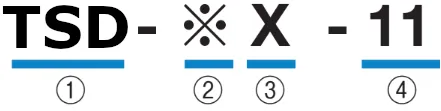

    TSD 型式説明
    TSD 型式説明詳細

    Temperature settings

    Fixed at the time of shipment (set temperature cannot be changed)

    Temperature settings

    Contact Specification

    Contact Specification

    Contact configuration

    Contact configuration

    How to wiring

    How to wiring

    ※Non-polar.

    Function principle

    Function principle

    A bimetallic strip, made by bonding two metals with different coefficients of thermal expansion, bends when heated and opens or closes the switch contacts.

    Document download

    Drawing PDF download

    図面
    温度スイッチ類 TSF / TSD

    *Data is located on Google Drive. If you are unable to access Google Drive due to internal security reasons,
      we will send it as an email attachment, so please use the inquiry form (Contact Us) to request it.
    ▷If you would like CAD data or instruction manuals, please use the inquiry form.
