▼In-line check valve (SUS-spec)

In-line check valve AIC(SUS-spec)

RoHS
インラインチェックバルブ AIC (SUS)

SUS-spec

Stainless steel in-line check valve for easy piping connection!

    • A stainless steel in-line check valve developed for machine tool coolant systems and water.

    • In addition to water-soluble coolant liquids, it can also be used for fresh water and industrial water.

    • All-stainless steel check valves prevent check valves from sticking due to rust even during transportation of coolant equipment or long-term operation interruptions.

    • You can prevent problems caused by condensation in a factory with a bad atmosphere.

  • ▷For hydraulic

    Specification

    • Max. pressure:25MPa

    • Proof pressure:45MPa

    • Body material:SUS

    • Fluid:Pure water , Petroleum oil , Water-glycol based oil

  • Description

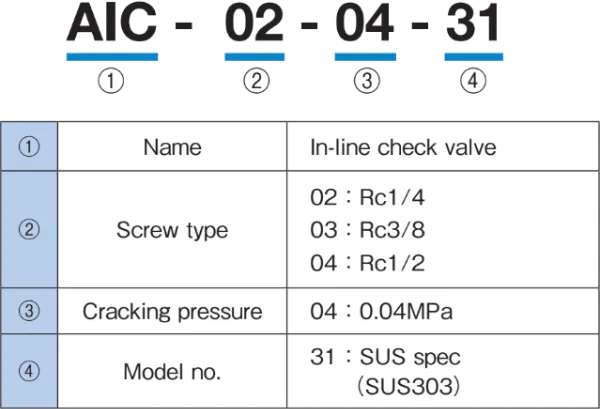

    型式説明

    Model

    型式表

    Flow/pressure drop characteristics

    【Measurement condition】
     Oil:ISO VG32  Oil temp.:45 ± 5°C

    AIC-04 流量-圧力降下特性
    AIC-04 流量-圧力降下特性
    AIC-04 流量-圧力降下特性

    Document download

    Drawing PDF download

    チェックバルブ類 AIC / OCS / ACC / ATC / ICS-MG / PC

    インラインチェックバルブ(逆止弁)

    ▷AIC-※-※-11 標準仕様(チョーク穴なし) ▷AIC-※-※-11-C※ 標準仕様(チョーク穴付) ▷AIC-※-※-31 (SUS)


    超小型カートリッジインラインチェックバルブ

    ▷ACC-05-11(-C※) (チョーク穴無し・有り 共用)


    スロットルチェックバルブ(流量調整弁)

    ▷ATC-01S (Rc1/8)▷ATC-02S (Rc1/4)▷ATC-03S (Rc3/8)


    残圧解放チェックバルブ(加圧時:閉)

    ▷ICS-02-MG


    パイロット操作チェックバルブ

    ▷PC-03-04-11


    インラインチェックバルブ(気体・液体用)

    ▷OCB※F(両端Rねじ)▷OCS※F(両端Rねじ SUS)▷ICS-※-007-11
    ▷If you would like CAD data or instruction manuals, please use the inquiry form.
