▼Small diameter high pressure nylon hose (SUS-spec)

Small diameter high pressure nylon hose NH(SUS-spec)

RoHS
小口径高圧ナイロンホース NH

SUS-spec

A small-diameter high-pressure nylon hose that is highly flexible and can withstand high pressure use!
Please use it instead of OST steel pipe.

    • This hose eliminates the need of bending work by a vendor, and reduces your time for complicated or long piping.

  • ▷ステンレス仕様はこちら

    ▷For hydraulic

    Example of use

    • Piping for a pressure gauge

    • Piping for a small flow rate pilot line

    • Hydraulic clamp for work

    • Piping for a miniature cylinder

    • Hydraulic circuit for an injection molding machine

    • Piping for a clamp cylinder and a pressure gauge of hydraulic press

    • Piping pressure gauge of hydraulic unit

      ※ Suitable for hydraulic circuits of low flow rate.

  • Specification

    • Outer diameter × Inner diameter:Φ6 × Φ3

    • Min. bending radius:30mm

    • Max. pressure:35MPa

    • Proof pressure:70MPa

    • Temp. range:-20~60℃

    • Ambient temp.:max.60℃

    • Fluid:Pure water, Petroleum oil, Water-glycol based oil

    • Weight:30g/m

  • Model

    形式表

    Hose fitting

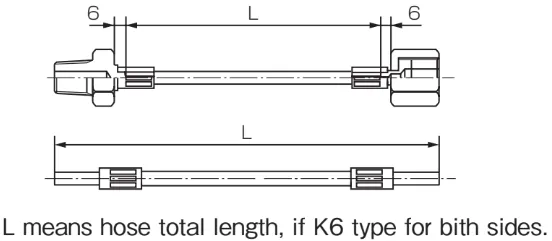

    Note of hose length

    ホース長さの決め方

    Structure

    Structure

    Precautions for use

    • NH hose is made of nylon resin. It must be connected without "fold" or "twist".

    • Expansion and contraction of hose outer diameter and length is generated, due to chenges of inner pressure.

      If you use a hose clamp to fix a hose, do not fix the hose tightly because of it. Select hose length added 20mm to your length, just in case.

    • Bending radius of hose must be more than the minimum value in "spec".

    • Keep NH hose away from fire.

    • Do not use beyond temperature range.

  • Document download

    Drawing PDF download

    小口径高圧ホース NH

    オス金具  Rねじ

    ▷NH(2/3)-R(1/2)▷NH3-R5(SUS)


    圧力計用金具 Gめねじ

    ▷NH(2/3)-G(2/3)▷NH3-G(5/6)(SUS)


    ホースユニオン オス金具

    ▷NH(2/3)-UM(1/2)▷NH3-UM5(SUS)


    ホースユニオン メス金具

    ▷NH2-UF(1/2)


    くい込み継手用金具 K6

    ▷NH(2/3/4)-K6▷NH3-K6S(SUS)
    ▷If you would like CAD data or instruction manuals, please use the inquiry form.
