▼Turning Spray Nozzle  ATN

Turning Spray Nozzle "ATN"

Flush the surrounding chips! Drop them !! Don't let them pile up !!!
It solves various problems caused by chips.
Also suitable for stirring and moving sludge that has settled in tanks!
[Turning Spray Nozzle ''ATN'']

360°Turning!

Can be disassembled and washed

For measures against chip accumulation in the processing room that causes processing defects and stoppages!

  • Obtained a patent (Patent No. 6557885)

  • Utilizing the discharge pressure of the coolant, the coolant is sprayed while rotating 360 °, so it can be washed out over a wide area.

  • ATN can turn stably at low pressure and low flow rate.

  • You don' t need drive source such as motors.

  • The simple construction is hard to be clogged.(It can be disassembled and cleaned.)

  • The turning speed will be changed depending on swing angle and discharge pressure. (We reccomned to use the commercial ball valve for adjusting rotation speed.)

Part number

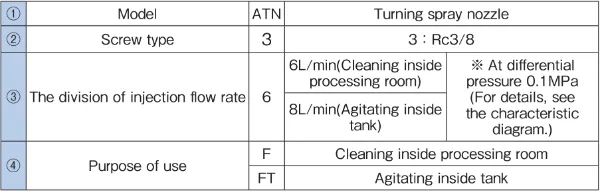

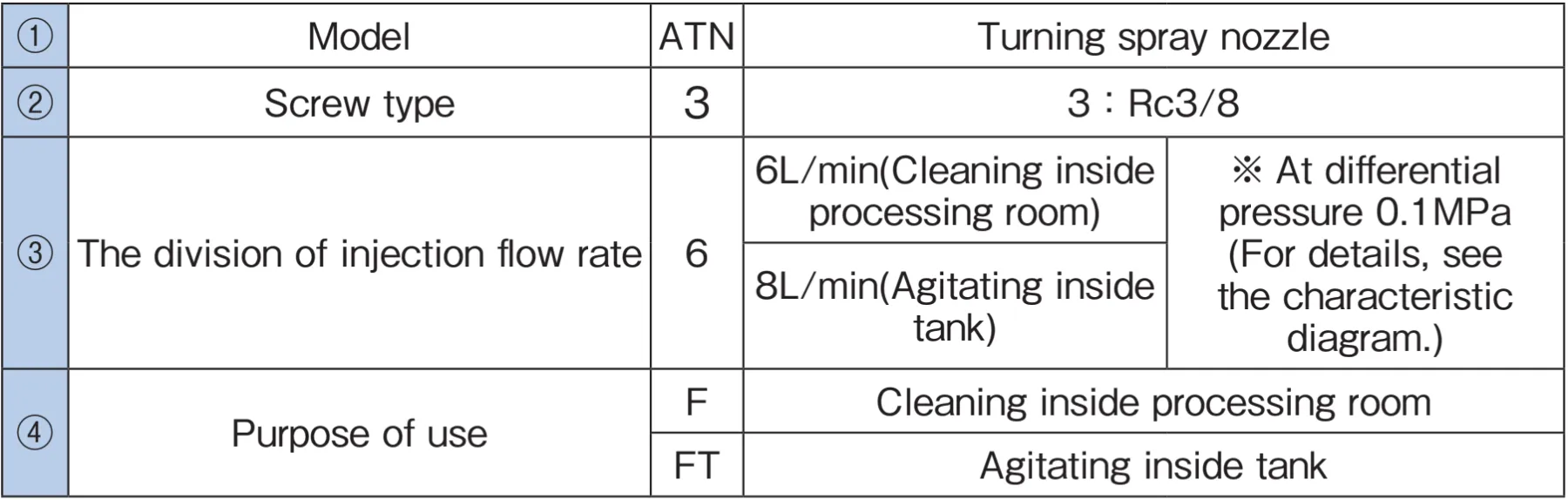

Specification

Example of use

Tool piping, above vice, inside of door

Customer's comments (from auto parts manufacturers)

  • Production capacity was increased and labor costs were reduced by shortening the cleaning time.

  • It had an effect on removing chips around the ATC shutter.

  • The chip cleaning inside the machine which was frequently performed by the air gun, has been significantly reduced.

  • It could be used for existing pumps and tanks, since it has stable turning at low flow rates.

  • Even if the machine was stopped for a while, it did not stick and was able to turn without problems at startup.

  • The visibility was improved and a short-time breakdown could be prevented by removing chips around a front door cover.

Reference video

▷There is also a video (Japanese only) detailing how to adjust the rotation speed. Please contact us.

Document download

Drawing PDF download

*Data is located on Google Drive. If you are unable to access Google Drive due to internal security reasons,
  we will send it as an email attachment, so please use the inquiry form (Contact Us) to request it.
▷If you would like CAD data or instruction manuals, please use the inquiry form.
